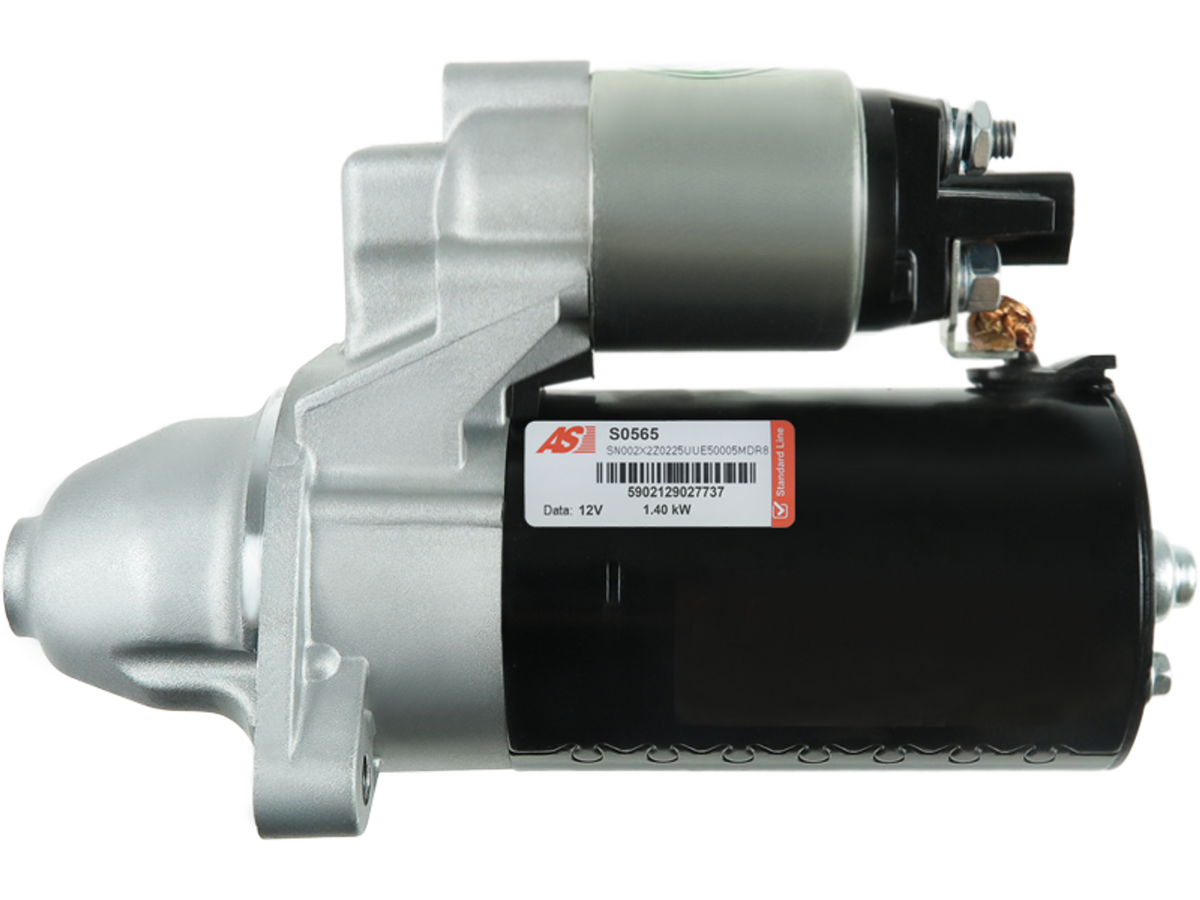

Démarreur AS/PL S0565 Wai 150.587.112.010

Démarreur AS/PL S0565 Wai 150.587.112.010

Référence : S0565

OE : 0001138055

EAN : 5902129027737

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.40

Sens de rotation CW

Dimension A [ mm ] 77.00

Dimension B [ mm ] 21.50

Nombre de dents [ pce ] 11

Nombre de trous de fixation [ pce ] 2

Nombre de trous taraudés [ pce ] 2

L.1 [ mm ] 230.00

O.1 [ mm ] 100.00

C.1 [ mm ] M10x1.25

C.2 [ mm ] M10x1.25

Références démarreurs compatibles :

0001138051 BOSCHListe

0001138052 BOSCH

0001138055 BOSCHListe

0001138056 BOSCHListe

0986029130 BOSCH

1986S00834 BOSCH

116026 CARGO

F032116026 CARGO

DRS0984 DELCO

36100-28301 HYUNDAI / KIA

36100-2B302 HYUNDAI / KIA

063726026010 MAGNETI MARELLI

MQS6026 MAGNETI MARELLI

AC-CBS5936 ACAUTO

A53-12-38055 ACKOJA

CGB-20984 AINDE

ANM100163 ANDEL

A29130 ATL AUTOTECHNIK

AEY4152 AUTOELECTRO

S100457 BTS TURBO

S104775 BTS TURBO

BREF0320986029130 CARWOOD GROUP

BREF0321986S00834 CARWOOD GROUP

STR10180 ELECTROLOG

25-5315 ELSTOCK

107847 FARCOM

8029130 FRIESEN

3112063 HENKEL PARTS

3112064 HENKEL PARTS

3112065 HENKEL PARTS

H5010927 HOFFER

STB8055 KRAUF

32671 LESTER

336096 LOGISTIK

LRS04152 LUCAS

LRS4152 LUCAS

5010927 MEAT & DORIA

8550506424 MOTRIO

4734018 NK

STM1467 ROLLCO

ST02771 TMI

150.587.112.010 WAI

150.587.112.210 WAI

150.587.112.280 WAI

150.587.112.440 WAI

32671N WAI

S130.544 WAI

S153.918 WAI

91-15-7338 WILSON

BOS0001138055 WOODAUTO

STR50633 WOODAUTO

Convient pour:

HYUNDAI ix20 (JC) 1.4 G4FA 11.2010 - 07.2019

HYUNDAI i30 Estate (GD) 1.4 G4FA 06.2012 - 12.2015

HYUNDAI i20 I (PB, PBT) 1.4 G4FA 09.2008 - 12.2015

HYUNDAI i30 Coupe 1.4 G4FA 05.2013 - 12.2014

HYUNDAI ix20 (JC) 1.4 G4FA 11.2010 - 07.2019

HYUNDAI i30 (GD) 1.4 G4FA 12.2011 - 12.2015

HYUNDAI i20 II Coupe (GB) 1.4 G4LC 05.2015 -

HYUNDAI i20 II (GB, IB) 1.4 G4LC 11.2014 - 06.2018

HYUNDAI i30 Estate (GD) 1.4 G4LC 01.2014 - 05.2017

HYUNDAI ix20 (JC) 1.4 LPG G4FA 11.2010 - 07.2019

HYUNDAI i30 (GD) 1.4 LPG G4FA 01.2013 - 12.2014

HYUNDAI i30 (GD) 1.6 G4FC 01.2012 - 12.2016

HYUNDAI i30 (GD) 1.6 G4FC 12.2011 - 12.2015

HYUNDAI ix20 (JC) 1.6 G4FC 11.2010 - 07.2019

HYUNDAI i30 Estate (GD) 1.6 G4FC 06.2012 -

HYUNDAI ix35 (LM, EL, ELH) 1.6 G4FD 11.2010 - 12.2015

HYUNDAI i30 Estate (GD) 1.6 G4FD 06.2012 - 12.2015

HYUNDAI i30 Estate (GD) 1.6 G4FG 06.2012 -

HYUNDAI i30 (GD) 1.6 G4FG 01.2012 - 12.2016

HYUNDAI i30 Coupe 1.6 GDI G4FD 05.2013 -

HYUNDAI i30 Hatchback Van (GDE) 1.6 GDI G4FD 05.2015 -

HYUNDAI TUCSON (TL, TLE) 1.6 GDi G4FD 06.2015 - 09.2020

HYUNDAI VELOSTER (FS) 1.6 GDI G4FD 03.2011 - 12.2017

HYUNDAI i30 (GD) 1.6 GDI G4FD 12.2011 - 12.2016

HYUNDAI i40 I CW (VF) 1.6 GDI G4FD 07.2011 - 05.2019

HYUNDAI i40 I (VF) 1.6 GDI G4FD 03.2012 - 05.2019

HYUNDAI i30 Kombi Van (GDE, GD) 1.6 GDI G4FD 05.2015 -

HYUNDAI i30 Estate (GD) 1.6 GDI G4FD 06.2012 -

HYUNDAI ix20 (JC) 1.6 LPG G4FC 11.2010 - 07.2019

HYUNDAI i30 Coupe 1.6 MPI G4FC 05.2013 -

HYUNDAI VELOSTER (FS) 1.6 MPI G4FC 04.2011 - 12.2017

HYUNDAI VELOSTER (FS) 1.6 MPI G4FG 04.2011 - 12.2017

HYUNDAI VELOSTER (FS) 1.6 T-GDI G4FJ 10.2012 - 12.2017

HYUNDAI TUCSON (TL, TLE) 1.6 T-GDi G4FJ 06.2015 - 05.2023

HYUNDAI TUCSON (NX4E, NX4A) 1.6 T-GDi G4FP 05.2021 -

HYUNDAI KONA (OS, OSE, OSI) 1.6 T-GDi G4FP 11.2020 - 04.2023

HYUNDAI KONA (SX2) 1.6 T-GDi G4FP 04.2023 -

HYUNDAI KONA (OS, OSE, OSI) 1.6 T-GDi 4WD G4FP 11.2020 - 04.2023

HYUNDAI KONA (SX2) 1.6 T-GDi 4WD G4FP 04.2023 -

HYUNDAI TUCSON (TL, TLE) 1.6 T-GDi All-wheel Drive G4FJ 06.2015 - 09.2020

HYUNDAI TUCSON (NX4E, NX4A) 1.6 T-GDi HTRAC G4FP 01.2022 -

HYUNDAI TUCSON (NX4E, NX4A) 1.6 T-GDi Hybrid 48V G4FU 11.2020 -

HYUNDAI TUCSON (NX4E, NX4A) 1.6 T-GDi Hybrid 48V G4FU 11.2020 -

HYUNDAI TUCSON (NX4E, NX4A) 1.6 T-GDi Hybrid 48V HTRAC G4FU 11.2020 -

HYUNDAI i20 III (BC3, BI3) 1.6 T-GDi N G4FP 11.2020 -

HYUNDAI i20 III (BC3, BI3) 1.6 T-GDi N G4FV 11.2020 -

HYUNDAI ix35 Van GDi G4FD 05.2015 - 12.2015

KIA RIO III Saloon (UB) 1.4 CVVT G4FA 10.2011 - 12.2017

KIA CEED Sportswagon (JD) 1.4 CVVT G4FA 09.2012 - 07.2015

KIA PRO CEED (JD) 1.4 CVVT G4FA 03.2013 - 07.2015

KIA CEED Combi Van (JD) 1.4 CVVT G4FA 04.2015 - 07.2018

KIA PRO CEED (JD) 1.4 CVVT G4FA 07.2013 - 07.2018

KIA CEED (JD) 1.4 CVVT G4FA 05.2012 - 07.2018

KIA VENGA (YN) 1.4 CVVT G4FA 02.2010 - 03.2019

KIA CEED (JD) 1.4 CVVT G4FA 05.2012 - 07.2018

KIA RIO III (UB) 1.4 CVVT G4FA 09.2011 - 12.2017

KIA RIO III Hatchback Van (UB) 1.4 CVVT G4FA 04.2015 -

KIA RIO III (UB) 1.4 CVVT G4FA 09.2011 - 12.2017

KIA VENGA (YN) 1.4 LPG G4FA 02.2010 - 03.2019

KIA CEED (JD) 1.4 LPG G4FA 05.2012 - 07.2018

KIA CEED Sportswagon (JD) 1.4 LPG G4FA 01.2013 - 07.2018

KIA PRO CEED (JD) 1.4 MPI G4LC 07.2013 - 07.2018

KIA SOUL I (AM) 1.6 G4FC 09.2009 - 12.2014

KIA SOUL I (AM) 1.6 CRDi 115 D4FB 02.2009 - 12.2014

KIA SOUL I (AM) 1.6 CRDi 128 D4FB 02.2009 - 12.2014

KIA PROCEED (CD) 1.6 CRDi 136 Eco-Dynamics+ D4FE 12.2019 -

KIA CEED (CD) 1.6 CRDi 136 Eco-Dynamics+ D4FE 12.2019 -

KIA XCEED (CD) 1.6 CRDi 136 Eco-Dynamics+ D4FE 12.2019 -

KIA CARENS III MPV (UN) 1.6 CVVT G4FC 06.2009 - 03.2013

KIA VENGA (YN) 1.6 CVVT G4FC 02.2010 - 03.2019

KIA RIO III Saloon (UB) 1.6 CVVT G4FC 06.2012 - 12.2017

KIA CEED (JD) 1.6 CVVT G4FC 11.2014 - 07.2018

KIA CEED Sportswagon (JD) 1.6 CVVT G4FC 11.2014 - 07.2018

KIA RIO III (UB) 1.6 CVVT G4FC 06.2012 - 12.2017

KIA CARENS III MPV (UN) 1.6 CVVT G4FC 08.2009 - 03.2013

KIA CEED (JD) 1.6 CVVT G4FC 01.2013 - 07.2018

KIA SOUL II (PS) 1.6 CVVT G4FG 02.2014 - 12.2018

KIA CEED (JD) 1.6 GDI G4FD 05.2012 - 07.2018

KIA SPORTAGE IV (QL, QLE) 1.6 GDI G4FD 09.2015 - 09.2022

KIA SOUL I (AM) 1.6 GDI G4FD 06.2011 - 12.2014

KIA CARENS IV 1.6 GDi G4FD 03.2013 - 08.2016

KIA SOUL II (PS) 1.6 GDI G4FD 02.2014 - 12.2018

KIA CEED Sportswagon (JD) 1.6 GDI G4FD 09.2012 - 07.2018

KIA SPORTAGE III (SL) 1.6 GDI G4FD 06.2010 - 12.2015

KIA PRO CEED (JD) 1.6 GDI G4FD 03.2013 - 07.2018

KIA CEED Combi Van (JD) 1.6 GDi G4FD 04.2015 - 07.2018

KIA PRO CEED (JD) 1.6 GT G4FJ 06.2013 - 07.2018

KIA CEED (JD) 1.6 GT G4FJ 06.2013 - 07.2018

KIA SPORTAGE IV (QL, QLE) 1.6 LPG (QLE) G4FD 07.2020 - 09.2022

KIA SPORTAGE IV (QL, QLE) 1.6 T-GDI G4FJ 09.2015 - 09.2022

KIA SPORTAGE V (NQ5) 1.6 T-GDI G4FP 02.2024 -

KIA SPORTAGE V (NQ5) 1.6 T-GDI G4FP 09.2021 -

KIA SPORTAGE V (NQ5) 1.6 T-GDI G4FP 11.2021 -

KIA SPORTAGE IV (QL, QLE) 1.6 T-GDI AWD G4FJ 09.2015 - 09.2022

KIA SPORTAGE V (NQ5) 1.6 T-GDI AWD G4FP 09.2021 -

KIA SPORTAGE V (NQ5) 1.6 T-GDI MHEV AWD G4FP 11.2021 -

KIA SPORTAGE V (NQ5) 1.6 T-GDI MHEV AWD G4FU 11.2021
