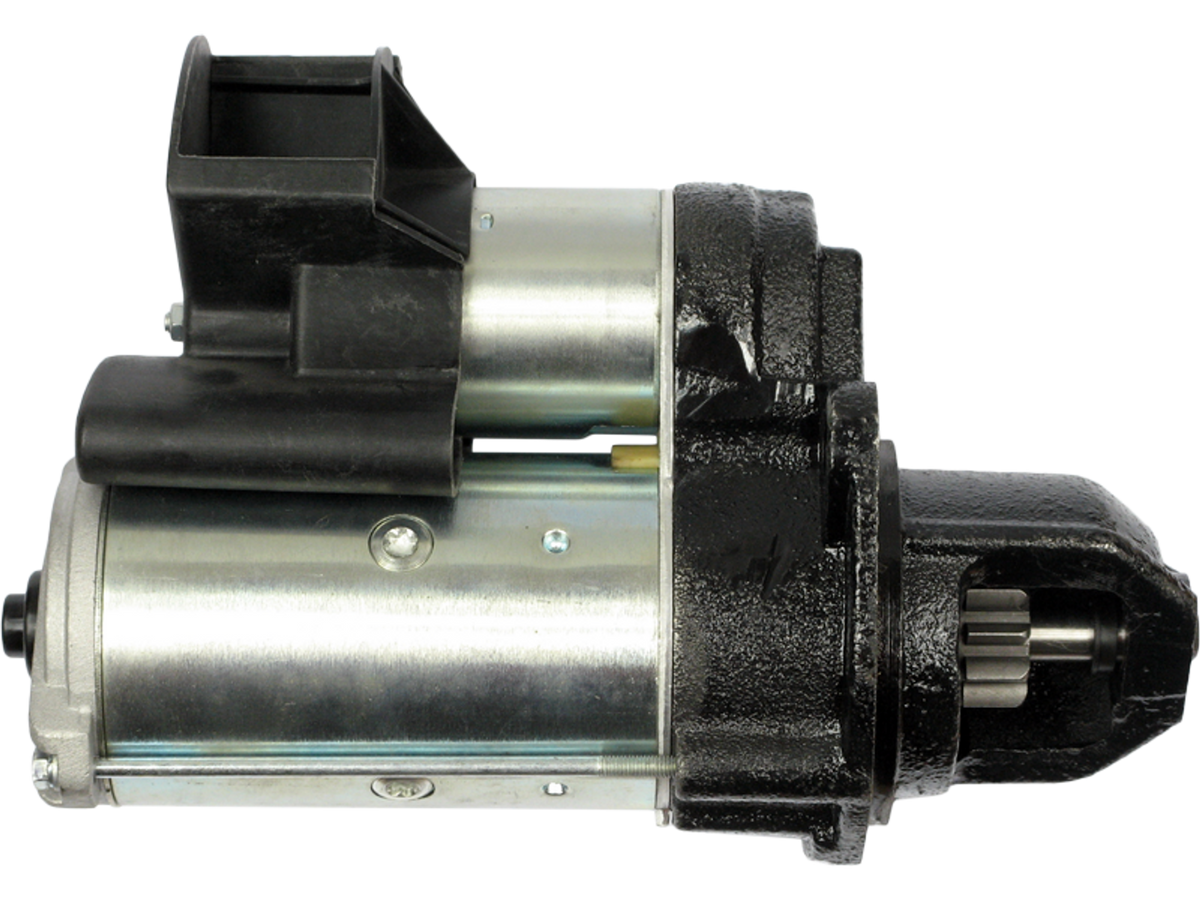

Démarreur AS/PL S3071 Wai 630.502.102.000
Démarreur AS/PL S3071 Wai 630.502.102.000
Référence : S3071
OE : D7R14
EAN : 5901259448740
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.80
Sens de rotation CW
Dimension A [ mm ] 82.00
Dimension B [ mm ] 35.00
Nombre de dents [ pce ] 10
Nombre de dents (compatible avec) [ pce ] 10
Nombre de trous de fixation [ pce ] 2
Nombre de trous taraudés [ pce ] 0
L.1 [ mm ] 256.00
O.1 [ mm ] 105.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
Références démarreurs compatibles :
113460 CARGO
113478 CARGO
F032113460 CARGO
F032113478 CARGO
DRT2520 DELCO
RE500819 JOHN DEERE
RE501157 JOHN DEERE
RE501347 JOHN DEERE
RE501680 JOHN DEERE
RE501686 JOHN DEERE
RE501689 JOHN DEERE
RE501693 JOHN DEERE
RE502156 JOHN DEERE
RE502196 JOHN DEERE
RE505746 JOHN DEERE
RE516157 JOHN DEERE
RE516455 JOHN DEERE
RE60641 JOHN DEERE
RE63010 JOHN DEERE
RE684701 JOHN DEERE
RE71505 JOHN DEERE
SE501865 JOHN DEERE
438012 VALEOListe
455735 VALEOListe
D7R14 VALEOListe
AM-2421 AUTO MAGNETO
AM-2421G AUTO MAGNETO
AM-2421W AUTO MAGNETO
CST15206GS CASCO
8077 CEVAM
STR0034 ELECTROLOG
STR79135 ELECTROLOG
25-4465 ELSTOCK
220613 ERA
220613A ERA
254364 KUHNER
254364S KUHNER
254364V KUHNER
LRS03792 LUCAS
LRS3792 LUCAS
5015888 MEAT & DORIA
20479602OE REAL
120-20325NOE ROBERT'S
6015206.1 SANDO
S12VA0703A2 SIDAT
MAV172060 SIOM
STX200819 STARDAX
STX200904 STARDAX
STX201072 STARDAX
17086N WAI
630.502.102.000 WAI
630.502.102.008 WAI
630.502.102.500 WAI
S134.365 WAI
S144.353 WAI
91-20-3530 WILSON
91-20-3530N WILSON
STR50264 WOODAUTO
VAL438012 WOODAUTO
VALD7R14 WOODAUTO
Convient pour:
ATLAS COPCO Divers modèles -
JOHN DEERE Series 2050 2550 01.1983 - 12.1986
JOHN DEERE Series 2050 2550 01.1983 - 12.1986
JOHN DEERE Series 5 5055E 3029H55 03.2011 -
JOHN DEERE Series 5 5055E 3029H55 03.2011 -
JOHN DEERE Series 5 5055E 3029HPY42 03.2011 -
JOHN DEERE Series 5 5055E 3029HPY42 03.2011 -
JOHN DEERE Series 5 5065E 3029H65 03.2011 -
JOHN DEERE Series 5 5065E 3029H65 03.2011 -
JOHN DEERE Series 5 5065E 3029HPY41 03.2011 -
JOHN DEERE Series 5 5065E 3029HPY41 03.2011 -
JOHN DEERE Series 5 5065M 10.2009 -
JOHN DEERE Series 5 5075E 3029H75 03.2011 -
JOHN DEERE Series 5 5075E 3029H75 03.2011 -
JOHN DEERE Series 5 5075E 3029HPY40 03.2011 -
JOHN DEERE Series 5 5075E 3029HPY40 03.2011 -
JOHN DEERE Series 5010 5210, 5310 3029DAT50 01.1998 - 12.2001
JOHN DEERE Series 5010 5210, 5310 3029TAT50 01.1998 - 12.2001
JOHN DEERE Series 5000 5300 3029DF150 01.1996 - 12.2000
JOHN DEERE Series 5000 5400 3029TAT50 01.1996 - 12.2000
JOHN DEERE Series 5000 5500 4039TAT01 01.1996 - 12.2000
JOHN DEERE Series 6010 6110 E 01.1999 -
JOHN DEERE Series 6010 6125 E 01.1997 - 12.2003
